KR4268V2

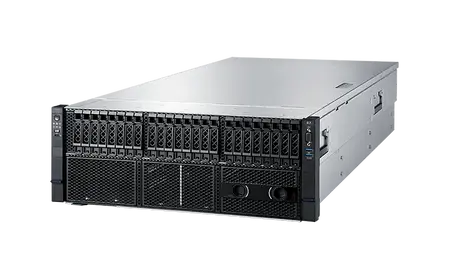

KR4268V2 With AMD EPYC™ 9004 Processors Is A Powerful 4U AI Server Featuring The Latest PCIe Gen 5.0 Architecture. It Supports Up To 8 FHFL Double-Width GPUs And 3 Additional PCIe GPU Cards. Its 10-Card Pass-Through Design Significantly Reduces CPU And GPU Communication Latency. This System Is An Ideal Solution For Advanced AI Applications Including AI Cloud, IVA, Video Processing, And More.
Enhanced Architecture
-
Latest CXL1.1 Interconnect Technology Supports Storage-Level Memory Space Expansion
-
Supports Latest 400G NDR Infiniband Network And 400G OCP 3.0
Flexible Configuration
-
Modular Design Concept Supports Flexible Component-Level Configuration
-
Compatible With The Latest AI Accelerators In The Ecosystem
Advanced Performance
-
Supports NVIDIA L40S, H100, And A100 GPUs
-
Supports 5nm AMD EPYC™ 9004 Processors, Up To 192 Cores
-
Supports 16 NVMe Or E3.S Hard Drives, Greatly Improving The Data Access Rate
-
PCIe Topology Structure With Up To 64GB/S Bandwidth Channel Enables High-Throughput Data Transmission
TECH SPECS & CUSTOMIZATION
KR4268-E2-A0-R0-00
Form Factor 4U Rack Server
GPU
8x FHFL Double-Widtd PCIe 5.0 GPU Cards
Supports Additional 2x FL Double-Widtd PCIe GPU, 1x FL Single-Widtd PCIe GPU Supports L40S, H100, A100
CPU
2x AMD EPYC™ 9004 Processors, Up To 400W
Memory 24x DDR5 4800MT/S RDIMMs
Expansion Slots 11x PCIe 5.0 X16 Slots
I/O
Front: 1x USB 3.0, 1x USB 2.0，1x VGA, 1x Type-C
Rear: 2x USB3.0, 1x RJ45, 1x MicroUSB, 1x VGA
OCP
1x OCP 3.0 SFF, Support NCSI
Management Aspeed 2600
Security
TPM 2.0 (Trusted Platform Module)
Storage
24x 2.5” SSD, Up To 16x NVMe U.2.
2x NVMe/SATA M.2
PSU 4x 12V 3000W, 2+2
Dimensions
